[Cover Fine Adj.]
Overview
Set the lead edge position, trimming amount, and image position for the cover.
The print position and trimming amount can be fine-adjusted.
Tips
- This item is displayed on a product equipped with a scanner and HDD. For details, refer to What Is the [COPY]?.
Tips
The following items can be set:
- [Cover Lead Edge Adj.]: Sets the lengthwise position of the front cover and body.
- [Cover Trimming Adj.]: Sets the cover trimming amount.
- [Cover Image Shift Adj.]: Sets the position of the image printed on the cover when [Cover Print] is set to [ON].
Specifications
Category | Print Workflow, Copy / Scan | ||
Location | Machine | Touch Panel, Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Perfect Binder PB-503 | ||
Required items | - | ||
Setting items | [Change Set] | Adjusts the lead edge position and trimming amount of the cover. | |
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [COPY] - [Output Setting] - [Perfect Bind] - [Cover Fine Adj.] | ||
Control panel - Utility/Counter - [User Setting] - [Initial Setting] - [Copy Initial Setting] - [Output Setting] - [Perfect Bind] - [Cover Fine Adj.] | |||
Procedure
1
Press [Change Set].
The setting screen is displayed.
2

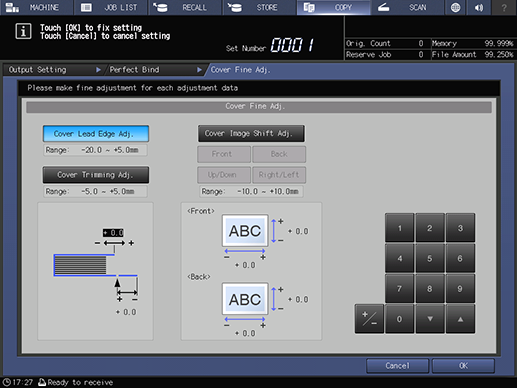

Select [Cover Lead Edge Adj.], and use the on-screen keypad to enter the numeric value.
Range: -20.0 mm to +5.0 mm
Pressing [,]/[+] increases or decreases the numeric value in increments of 0.1 mm.
Use [+ / -] to set the plus or minus of the numeric value.
3
Select [Cover Trimming Adj.], and use the on-screen keypad to enter the numeric value.
Range: -5.0 mm to +5.0 mm
Pressing [,]/[+] increases or decreases the numeric value in increments of 0.1 mm.
Use [+ / -] to set the plus or minus of the numeric value.
4
Select [Cover Image Shift Adj.], and use the on-screen keypad to enter the numeric value.
Range: -10.0 mm to +10.0 mm
Pressing [,]/[+] increases or decreases the numeric value in increments of 0.1 mm.
Use [+ / -] to set the plus or minus of the numeric value.
5
Press [OK].
