User's Guide

> User Settings > [Copy Initial Setting] - [Output Setting] > [Perfect Bind] > [Spine Width(1~30mm)]

[Spine Width(1~30mm)]

Overview
Specifications
Procedure

Overview

Set the width of the spine.

Tips
  • This item is displayed on a product equipped with a scanner and HDD. For details, refer to What Is the [COPY]?.

Specifications

Category

Print Workflow, Copy / Scan

Location

Machine

Touch Panel, Control Panel

Printer driver

-

Application

-

Required options

Perfect Binder PB-503

Required items

-

Setting items

[Change Set]

Sets the width of the spine.

Remarks

-

Reference

-

Screen access

Touch panel - [COPY] - [Output Setting] - [Perfect Bind]

Control panel - Utility/Counter - [User Setting] - [Initial Setting] - [Copy Initial Setting] - [Output Setting] - [Perfect Bind]

Procedure

1
Press [Change Set].

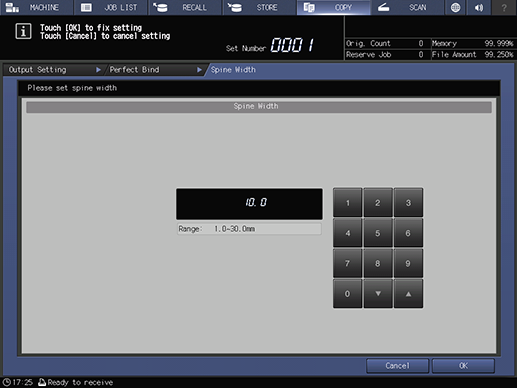

The setting screen is displayed.

2
Enter a number in [Spine Width] using the keypad on the screen.

Available range: 1.0 mm to 30.0 mm

Pressing [,]/[+] increases or decreases the numeric value in increments of 0.1 mm.

3
Press [OK].
