[2-Side Slitting]
Overview
Configure the setting to slit both edges of Multi Half Fold paper.
NOTICE
- Only 1 sheet is folded for slitting. It will not be folded over.
- If [2-Side Slitting] is combined with Tri-Fold, wrinkles may occur depending on the paper type.
- If [2-Side Slitting] is combined with Tri-Fold and [Crease], the part near wrinkles may tear. If wrinkles occur in either case, reduce the amount of slitting, because wrinkles are easily formed when the slitting amount is 20 mm or more.
Tips
- This item is displayed on a product equipped with a scanner and HDD. For details, refer to What Is the [COPY]?.
Specifications
Category | Print Workflow, Copy / Scan | ||
Location | Machine | Touch Panel, Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Saddle Stitcher SD-513 with Trimmer Unit TU-503 mounted | ||
Required items | - | ||
Setting items | [ON] | Slits both edges of the paper. [Slitting] is available. | |
[OFF] | Does not slit both edges of the paper. | ||
Remarks | - | ||
Reference | - | ||

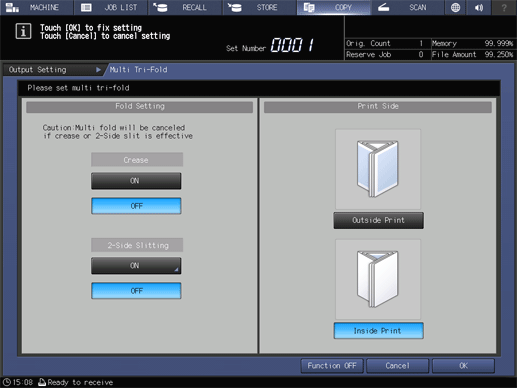

Screen access | Touch panel - [COPY] - [Output Setting] - [Multi 3-Fold] | ||
Control panel - Utility/Counter - [User Setting] - [Initial Setting] - [Copy Initial Setting] - [Output Setting] - [Multi 3-Fold] | |||
Procedure
Set [Slitting] for 2-Side Slit.
1
Press [ON].
The setting screen is displayed.
2
Select [(1)] or [(2)] of [Slitting], and use the on-screen keypad to enter the slitting amount.
Range: 8.0 mm to 26.0 mm
Pressing [,]/[+] increases or decreases the numeric value in increments of 0.1 mm.
Use [+ / -] to set the plus or minus of the numeric value.
When the slitting amount is different between [(1)] and [(2)] by 10.0 mm or more, its value cannot be entered.
3
Press [OK].
