[Scan Mode Memory]
Overview
Display the setting registered as the Scan program at the bottom of the [SCAN] screen as a shortcut key.
It is convenient to set the frequently used programs.
NOTICE
- The following setting is required to use this function.
- Register the Scan program.
Tips
- This item is displayed on a product equipped with a scanner and HDD. For details, refer to What Is [User Setting]?.
Reference
- For details about how to register the Scan program, refer to [Store].
Specifications
Category | Copy / Scan | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [F1] | Selects the key to register the program. | |
[F2] | |||
[F3] | |||
[F4] | |||
[F5] | |||
[F6] | |||
[<< Entry] | Registers programs in the [F1] to [F6] keys. | ||
[Delete] | Deletes the registered programs from the [F1] to [F6] keys. | ||
Program display key | Displays the registered programs in the range of [01] to [30]. | ||
[+] / [,] | Switches the program to display. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Control panel - Utility/Counter - [User Setting] - [System Setting] - [Shortcut Key Register] - [Scan Mode Memory] | ||
Procedure
1

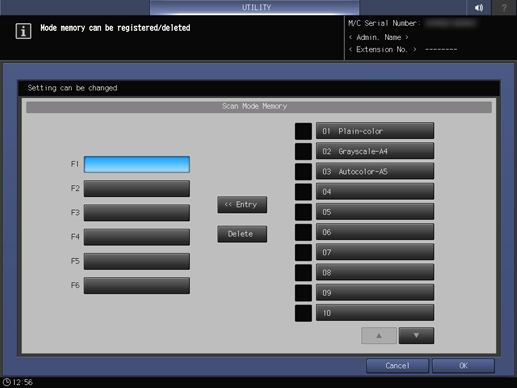

Select the Scan program registration key from [F1] to [F6].
2

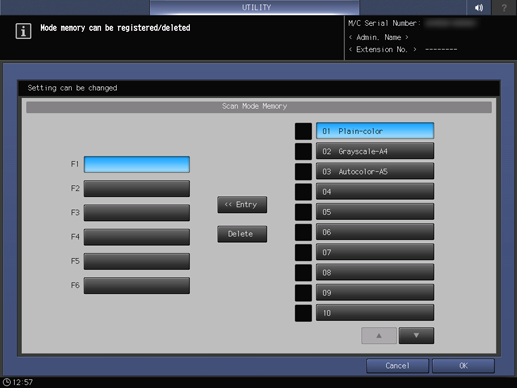

Select the Scan program you want to register from the program display keys, and press [<< Entry].
3
Press [OK].
