[IPsec]
Overview
Configure various settings to use IPsec.
IPsec is an architecture used to establish secure network connections.
Using the encryption technology prevents data tampering or data leakage for each IP packet.
This function, which conducts encryption in the network layer, ensures secure communications even if higher-layer protocols or applications are incompatible with the encryption being used.
NOTICE
- The following setting is required to display this screen.
- Access in [Admin Mode].
Reference
- For details about how to access in [Admin Mode], refer to [Login].
Specifications
Category | Network / Security | ||
Location | Machine | - | |
Printer driver | - | ||
Application | Web Connection | ||
Required options | - | ||
Required items | - | ||
Setting items | [IPsec Setting] | Besides [IKE], SA (Security Association), [Peer] and [Protocol Setting] used in encrypted transmission is registered, edited and deleted. | |
[Enable IPsec] | Sets whether to enable IPsec communication. Verification conditions of certificate can be set and communication direction of IP packets etc. can be set for each group. For details about the setting, refer to [Enable IPsec]. | ||
[Communication Check] | Checks IPsec communication. For details about the setting, refer to [Communication Check]. | ||
[OK] | Moves to the screen of the selected setting item. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Web Connection - [Network] - [TCP/IP Setting] - [IPsec] | ||
Procedure (IKE v1 Setting)
1
Select [IPsec Setting], and click [OK].
2
Click [Edit] of [IKEv1].
3
Set each item.
For details about the setting, refer to [IKEv1 Settings].
4
Click [OK].
5
Click [OK] on the setting completion screen.
Procedure (IKE v2 Setting)
1
Select [IPsec Setting], and click [OK].
2
Click [Edit] of [IKEv2].
3
Set each item.
For details about the setting, refer to [IKEv2 Settings].
4
Click [OK].
5
Click [OK] on the setting completion screen.
Procedure (SA Setting)
1
Select [IPsec Setting], and click [OK].
2
Click [Register] of the desired field in [SA].
To edit the registered SA, click [Edit].
3
Set each item.
For details about the setting, refer to [IPsec SA Settings].
4
Click [OK].
5
Click [OK] on the setting completion screen.
Procedure (Registering or Editing the Peer)
1
Select [IPsec Setting] and click [OK].
2
Click [Register] of the desired field in [Peer].
To edit the registered peer, click [Edit].
3
Set each item.
For details about the setting, refer to [Peer].
4
Click [OK].
5
Click [OK] on the setting completion screen.
Procedure (Protocol Setting)
1
Select [IPsec Setting], and click [OK].
2

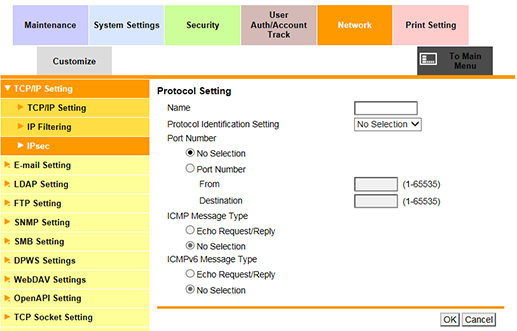

Click [Register] of the desired field in [Protocol Setting].
To edit the registered protocol specification, click [Edit].
3
Set each item.
For details about the setting, refer to [Protocol Setting].
4
Click [OK].
5
Click [OK] on the setting completion screen.
