Screen
Overview

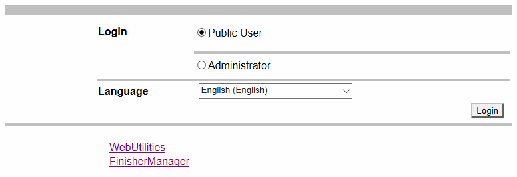

This is the Web Connection login screen.
Use the following methods to access the login screen.
- Enter the IP address of this system in the URL field of the browser, and press the Enter key. For details about how to confirm the IP address, refer to [TCP/IP Settings].
%IPv4 example: http://192.168.1.20/
%IPv6 example: http://[fe80::220:6bff:fe10:2f16]/
Tips
- When user authentication or account track is enabled, you need to enter the registered user name and password, or the account name and account password. When disabled, you are automatically logged in as a public user. For details, refer to [Login].
- Clicking [WebUtilities] on the login screen displays the top screen of Web Utilities.
- Clicking [FinisherManager] on the login screen displays the top screen of Finisher Manager. Access when creating or editing a trimmer profile.
Reference
- For details about Web Utilities, refer to Web Utilities.
- For details about Finisher Manager, refer to [Trimmer Profile].
Screen Access
Browser - Login screen
Screen
Common buttons
Button name | Description |
|---|---|
[Login] | Logs in to Web Connection. |
[WebUtilities] | Accesses Web Utilities. |
[FinisherManager] | Accesses Finisher Manager. |
