JOB LIST | [(2)2-Side Slit]

[(2)2-Side Slit]

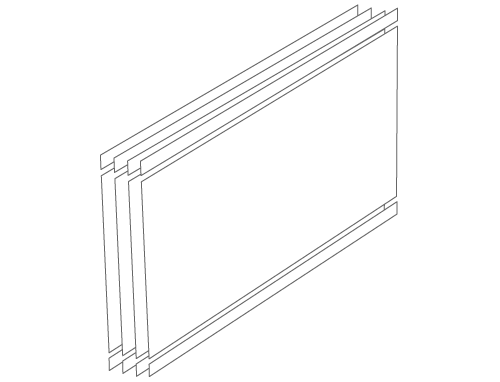

Configure the setting to slit both edges of Multi Half Fold paper.

NOTICE

Multi Half Fold sheets are output to the Conveyance belt. Set the Delivery tray extension (tray) as preparation, and open the Stopper. Otherwise, the printed paper may drop down from the Conveyance belt. Also, the full-load detection function of Saddle Stitcher SD-513 may not work.
When using easy-to-curl and thin paper for Multi Half Fold, print out so that paper is curled inside. Before printing a booklet, print only several sheets to the Secondary (sub) tray, and check the curl orientation. If the printed-out sheets are curled upward, paper is curled inward when a booklet is created.

Tips

Reference

Category		Print Workflow, Copy / Scan
Location	Machine	Touch Panel
	Printer driver	-
	Application	-
Required options		Saddle Stitcher SD-513 with Trimmer Unit TU-503 mounted
Required items		-
Setting items		[ON]	Slits both edges of paper. [Slitting] and [Offset against Cover] are available.
		[OFF]	Does not slit both edges of paper.
Remarks		-
Reference		-

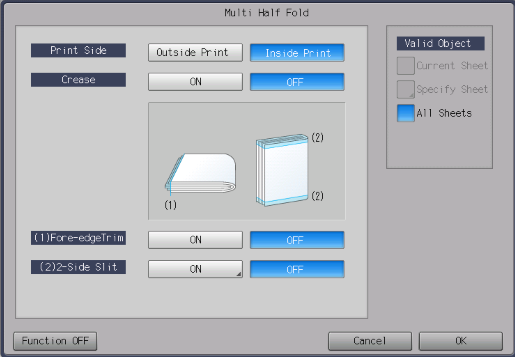

Screen access		Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Job Ticket] - [Job Ticket Edit] - [Multi Half Fold]
		Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Page Edit] - [Job Ticket Edit] - [Multi Half Fold]

Set [Slitting] and [Offset against Cover] for 2-Side Slit.

Press [ON].

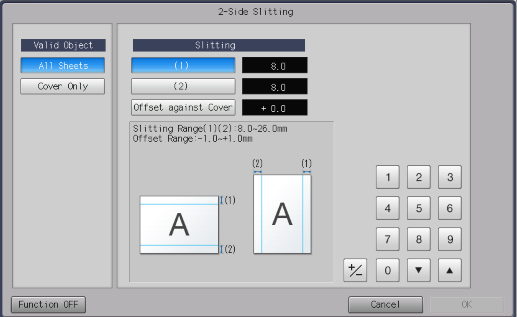

The setting screen is displayed.

Select [(1)] or [(2)] of [Slitting], and use the on-screen keypad to enter the slitting amount.

Range: 8.0 mm to 26.0 mm

Pressing [,]/[+] increases or decreases the numeric value in steps of 0.1 mm.

Use [+ / -] to set the plus or minus of the numeric value.

When the slitting amount is different between [(1)] and [(2)] by 10.0 mm or more, its value cannot be entered.

Select [Offset against Cover], and use the on-screen keypad to enter the slitting amount of the body for the cover.

Range: -1.0 mm to 1.0 mm

Pressing [,]/[+] increases or decreases the numeric value in steps of 0.1 mm.

Press [OK].
