User's Guide

> JOB LIST > [Job Ticket] - [Job Ticket Edit] > [2-Side Slitting] > Screen

Screen

Overview
Screen Access
Screen

Overview

Configure the setting to slit both edges of paper. The slitting amount can also be set.

You can also select a sheet to apply the setting to.

Tips
  • This item is not displayed when the optional Trimmer Unit TU-510 is mounted.

Screen Access

Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Job Ticket] - [Job Ticket Edit] - [2-Side Slitting]

Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Page Edit] - [Job Ticket Edit] - [2-Side Slitting]

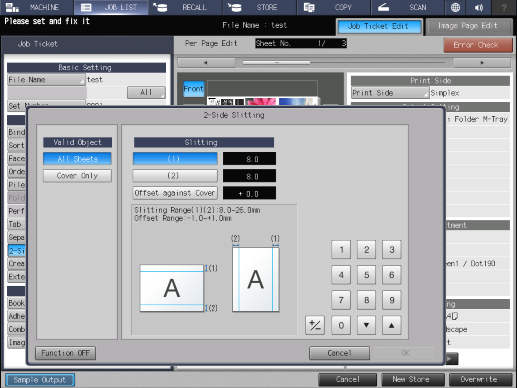

Screen

Common keys

Key name

Description

[Cancel]

Moves to the previous screen without saving the settings.

[OK]

Saves the settings and moves to the previous screen.
