JOB LIST | [Page Margin]

[Page Margin]

Arbitrarily adjust the space between 2 images, and set the binding margin (margin for binding).

Select the image side to set the binding margin.

Tips

Adhesive binding is not available when

the imposed image has a different controller image compression setting (Gradation Priority/Resolution Priority); or
[Offset Group] or [Group] is selected in [Sort/Group] of [Output Setting].

Tips

For 1-sided printing, only the [Front Side] setting is available.
For 2-sided printing, to set the same shift amount to [Front Side] and [Back Side], select [Double Sided].

Reference

Category		Print Workflow, Copy / Scan
Location	Machine	Touch Panel
	Printer driver	-
	Application	-
Required options		-
Required items		-
Setting items		[ChangePageSpace]	Sets the space between 2 images.
Remarks		-
Reference		-
Screen access		Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Job Ticket] - [Job Ticket Edit] - [Adhesive Binding] - [ChangePageSpace]
		Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Page Edit] - [Job Ticket Edit] - [Adhesive Binding] - [ChangePageSpace]
		Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Job Ticket] - [Job Ticket Edit] - [Image Repeat] - [ChangePageSpace]
		Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Page Edit] - [Job Ticket Edit] - [Image Repeat] - [ChangePageSpace]

Press [ChangePageSpace].

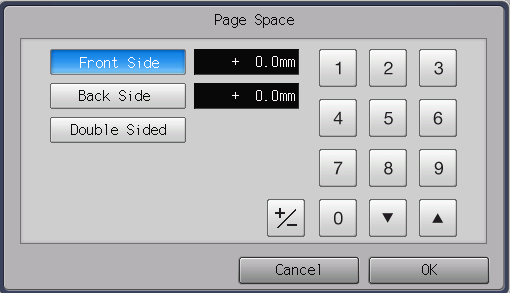

The setting screen is displayed.

Press the image side to set.

[Front Side]: Adjusts the image position of [Front Side].

[Back Side]: Adjusts the image position of [Back Side].

[Double Sided]: Simultaneously adjusts the shift amounts of [Front Side] and [Back Side].

Use the on-screen keypad to enter the numeric value.

Range: -250.0 mm to 250.0 mm

Pressing [+]/[,] increases or decreases the numeric value in steps of 0.1 mm.

Use [+ / -] to set the plus or minus of the numeric value.

Press [OK].
