User's Guide

> JOB LIST > [Job Ticket] - [Job Ticket Edit] > [Profile No.] - [SearchCondition] > Screen

Screen

Overview
Screen Access
Screen

Overview

Search for the registered paper profile.

The target paper profile can be easily recalled by setting and narrowing down conditions.

Screen Access

Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Job Ticket] - [Job Ticket Edit] - [Profile No.] - [SearchCondition]

Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Page Edit] - [Job Ticket Edit] - [Profile No.] - [SearchCondition]

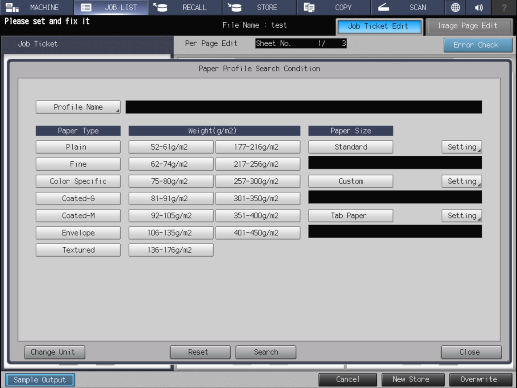

Screen

Common keys

Key name

Description

[Reset]

Releases the selected item.

[Search]

Makes a search using the selected item.

[Close]

Moves to the previous screen.
