Login
Overview
Login is required to check [AutoInspect.Report].
Enter [User Name] and [Password] to log in.
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | All the following optional devices are required. Intelligent Quality Optimizer IQ-501 Auto Inspection Unit UK-301 Relay Unit RU-702 Video Interface Kit VI-514 Video Interface Kit VI-515 | ||
Required items | - | ||
Setting items | [User Name] | Enter the registered user name. | |
[Password] | Enter the password for the user name specified in [User Name]. | ||
[Save this information] | Select this check box to display [User Name] and [Password] you entered at this time when logging in from the next time. | ||
[Cancel] | Returns to the previous screen without logging in. | ||
[OK] | Logs in with the entered [User Name] and [Password]. | ||
Remarks | When an optional external image controller such as the Fiery color server is mounted on this system, [Save this information] is not available. | ||
Reference | The password can be changed. For details, refer to [Web Access Password Setting]. | ||
Screen access | Touch panel - [MACHINE] - [AutoInspect.Report] | ||
Procedure (Login)
1
Press [AutoInspect.Report] on the [MACHINE] screen.
The [Login] screen is displayed.
2
Enter [User Name] and [Password].
User name: webuser
Enter the desired password.
3
Press [OK].
The [AutoInspect.Report] screen is displayed.
Procedure (Deleting the Saved [User Name] and [Password])
To delete the saved [User Name] and [Password], follow the procedure below.
1
Press "
" on the [MACHINE] screen.
" on the [MACHINE] screen.2

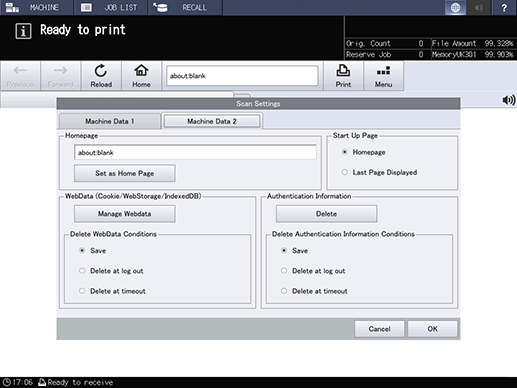

Press [Menu] - [Setting] - [Setting].
3
Press [Delete] in [Machine Data 2].
The saved [User Name] and [Password] are deleted.
