[Memory Status] Screen Layout

Overview

This function allows you to check the remaining memory space of both the machine and Auto Inspection Unit UK-301.

Tips

If there is not enough free space, the job may be stopped. Follow the instructions shown in [Available Capacity Recovery Method] to increase the amount of available free space.

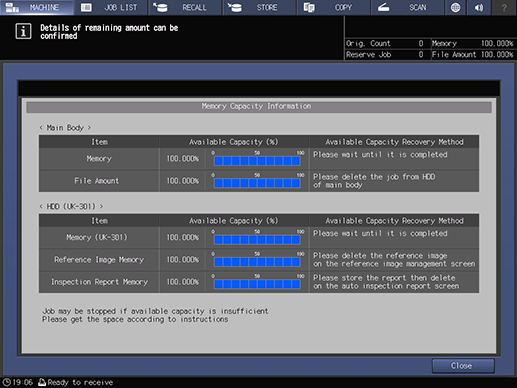

Screen and Description

Machine

Item name	Description
[Memory]	Indicates the amount of available space in the memory of the machine.
[File Amount]	Indicates the amount of available space in the file system of the machine.

UK-301 HDD

Item name	Description
[Memory (UK-301)]	Indicates the amount of available space in the memory of Auto Inspection Unit UK-301.
[Reference Image Memory]	Indicates the amount of available space in the reference image memory of Auto Inspection Unit UK-301.
[Inspection Report Memory]	Indicates the amount of available space in the inspection report memory of Auto Inspection Unit UK-301.

Common keys

Key name	Description
[Close]	Moves to the [MACHINE] screen.
