Print Manager Measurement Instrument Service Installation

To use the colorimeter using Print Manager, make sure to install Print Manager Measurement Instrument Service before using it at first.

1

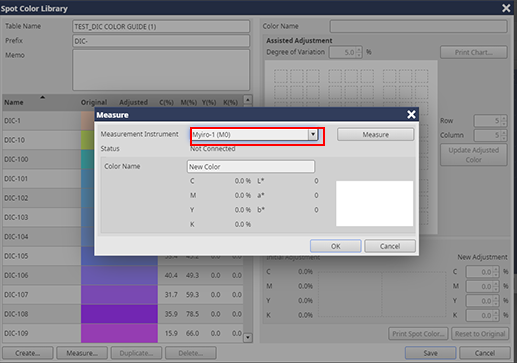

Select the connected colorimeter in [Measurement Instrument] of Print Manager.

For details about [Measurement Instrument], refer to [Measure...].

2

Click [Measure].

The [Connect to Measurement Instrument Service] screen is displayed at the first use of the colorimeter.

3

Click [Download].

4

Click the menu list, and select the language.

The Print Manager Measurement Instrument Service installer starts.

Follow the on-screen instructions to install software.

5

Select software you want to install, and click [Next].

6

Select the folder to install software, and click [Next].

7

Click [Install].

8

Click [Finish].

Installation is completed.

If the security warning window is displayed, permit access.

9

Carry out calibration using the colorimeter in Print Manager.

Follow the on-screen instructions to perform operations.

10

Scan a color sample.

When registration is complete, the colorimeter becomes available.
