Sending
Sending (Basic operation flow)
This section describes how to perform the scan/fax transmission when using the Enlarge Display function.
Load the original.
When loading the original into the ADF, pull out the Document Stopper (1) to prevent the scanned original from falling.
Tap [Scan/Fax] on the main menu of classic style.
Tap [Enlarge Display] in the side menu.
Specify the destination.
For details on how to specify a destination, refer to Here.
If [Dest. Settings] is tapped, you can view the list of the selected destinations.

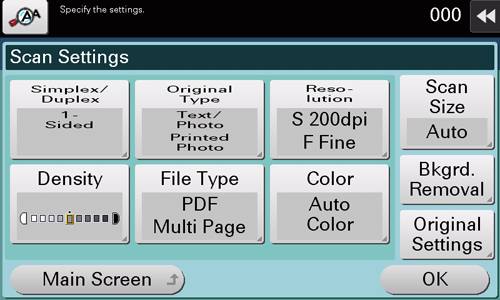

When necessary, tap [Scan Settings] to configure option settings of the scan transmission.
Specify the size of the target original in [Scan Size] (default: [8-1/2 11] (inch area)/[A4] (centimeter area)). If you fail to set the original size correctly, the image may be cut off.
For details on option settings, refer to Here.
Use the Start key to start transmission.
Using the Stop key enables you to stop scanning the original. A list of the currently stopped jobs is displayed. To stop transmission, select the target job from the list, and delete it.
Configuring Enlarge Display operations (Here)
Sending after recalling the scan/fax program
The scan/fax program contains a combination of commonly-used settings as one recall key. For transmission, recall the scan/fax program with a single touch of a button on the main screen of Enlarge Display.
The scan/fax program must be registered on the normal screen in advance. For details on the registration procedure, refer to Here.
Load the original.
Tap [Scan/Fax] on the main menu of classic style.
Tap [Enlarge Display] in the side menu.

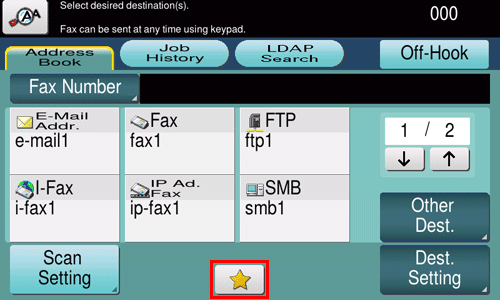

Tap the icon to recall the program.
Select the program you want to recall, and tap [OK].
The registered content of a program is applied.
Specify a destination if no destination is registered in Program.
For details on how to specify a destination, refer to Here.
Use the Start key to start transmission.
