Copy Settings ([Original/Density])

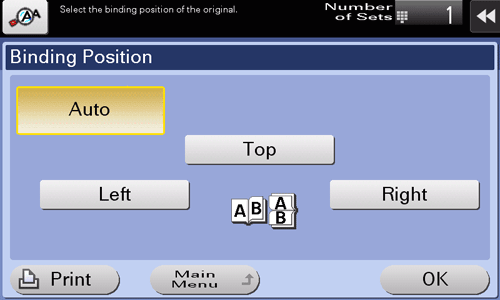

[Auto]

Automatically configures the binding position of the original.

• When the long side of the original is 11-11/16 inches (297 mm) or less, the binding position is set to the long side of the paper.

• When the long side of the original exceeds 11-11/16 inches (297 mm), the binding position is set to the short side of the paper.

[Top]

Select this option when the binding position is set to the top of the original.

[Left]

Select this option when the binding position is set to the left of the original.

[Right]

Select this option when the binding position is set to the right of the original.

[Text]

Copies an original, which consists primarily of text, at the optimum image quality level.

This function sharpens the edges of each character, creating easy-to-read images.

[Map]

Copies an original that has a colored background such as a map or that has been drawn by pencil or colored thin line, at the optimum level of image quality.

A sharp copy image is produced.

[Dot Matrix Original]

Copies an original, that primarily consists of text such as thin or faint characters, at the optimum image quality level.

This function reproduces text using high pixel density, creating easy-to-read text.

[Copied Paper]

Copies the original, which is output with an even density from the copier or printer, at the optimum image quality level.

[Text/Photo]

Copies the original, which consists of text and photos, at the optimum level of image quality.

This function sharpens the edges of each character and reproduces smoother photos.

• [Photo Paper]: Select this option to scan an original that contains photos printed on photographic paper.

• [Printed Photo]: Select this option to scan the printed original such as a brochure or catalog.

[Photo]

Copies an original consisting only of photos at the optimum image quality level.

• [Photo Paper]: Select this option to scan an original printed on photographic paper.

• [Printed Photo]: Select this option to scan the printed original such as a brochure or catalog.

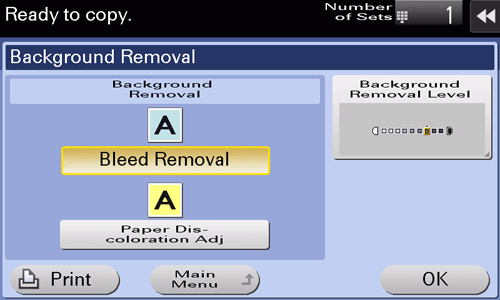

[Background Removal]

Copies a thin 2-sided original or an original with a colored background, at the optimum image quality level.

• [Bleed Removal]: Select this option to prevent bleeding of the back of the paper when printing a 2-sided original that is so thin that the contents of the back side would be scanned.

• [Paper Discoloration Adj]: Select this option to scan an original with a colored background such as a map.

[Bkgd. Removal Level]

Adjusts the density of the background color for an original with a colored background. If [Auto] is selected, the density of the background color is determined automatically, and the original is copied at the optimal background density level.
