Sending (Basic Operation Flow)

  1. Load the original.

    • When loading the original into the ADF, pull out the Document Stopper (1) to prevent the scanned original from falling.

  2. Tap [IP Address Fax] on the home screen.

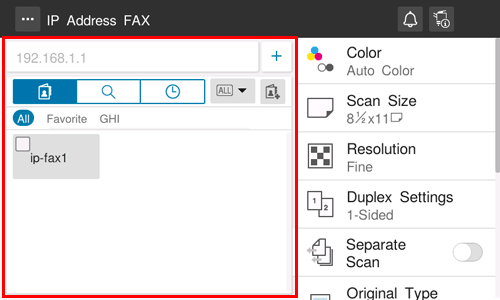

  3. Specify the destination.

    • For details on how to specify a destination, refer to Here.

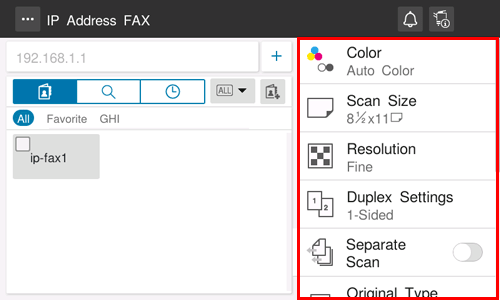

  4. Specify transmission options as needed.

    • Specify the size of the target original in [Scan Size] (default: [8-1/2 11] (inch area)/[A4] (centimeter area)). If you fail to set the original size correctly, the image may be cut off.

    • For details on option settings, refer to Here.

  5. Use the Start key to start transmission.

    • Using the Stop key enables you to stop scanning the original. A list of the currently stopped jobs is displayed. To stop transmission, select the target job from the list, and delete it.

  • Resending a Fax (Here)

  • Changing the default option setting (Here)
