Specifying a Destination

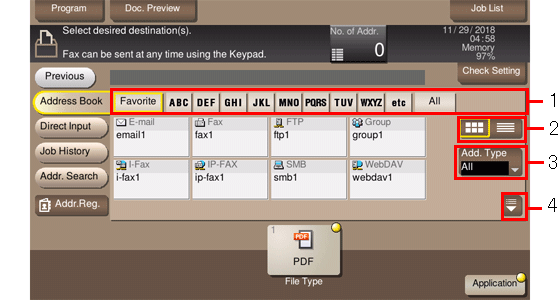

Using Address Book

[Address Book] displays a list of destinations registered on this machine. Select an index or destination type to narrow the destination list, and specify the target destination.

No.

Description

1

Narrow down destinations with the index specified for the registered destination. Using [Address] in combination further narrows down destinations.
The following keys can be used to narrow down destinations:

  • [All]: Displays all address book entries registered on this machine.

  • [Favorite]: Displays the destinations specified with [Favorite] as an index.

  • [etc]: Displays destinations for which the registered name of each begins with a character other than an alphabet character.

2

Switches the display of the registered destinations to the button or list view mode.

If the list view mode is selected, you can sort destinations by registration number, destination type, or registered name.

3

Narrows down destinations by the type of the registered destination. Also, using an index further narrows down destinations.

4

Expands the area when scrolling is required in the area where the registered destinations are displayed.

Searching for the registered destination

Tapping [Addr. Search] displays the destination search screen. If a large number of destinations are registered, the system searches for the registered name of the destination or characters of the address to find the target destination.

  1. Tap [Addr. Search] - [Name Search] or [Address Search].

    • When searching for a destination using its registered name, tap [Name Search].

    • When searching for a destination using characters of the address, tap [Address Search].

  2. Enter the search word, and tap [Search].

  3. Specify the target destination from the search result.

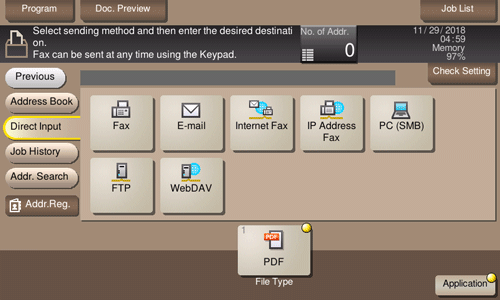

Directly entering the destination

In [Direct Input], directly enter destination information.

Purpose

Reference

To send fax

Here

To send E-mail with an attached file

Here

To send Internet fax

Here

To send IP Address fax

Here

To send data to a shared folder of a computer or server

Here

To send data to the FTP server

Here

To send data to the WebDAV server

Here

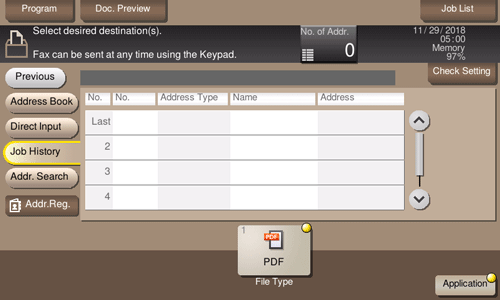

Using Job History

Tapping [Job History] displays a list of transmission logs. Specify the target destination from the previous five job histories.

  • If a registered destination or a User Box is edited or if the Main Power Switch is turned off or on, the log information is deleted.
